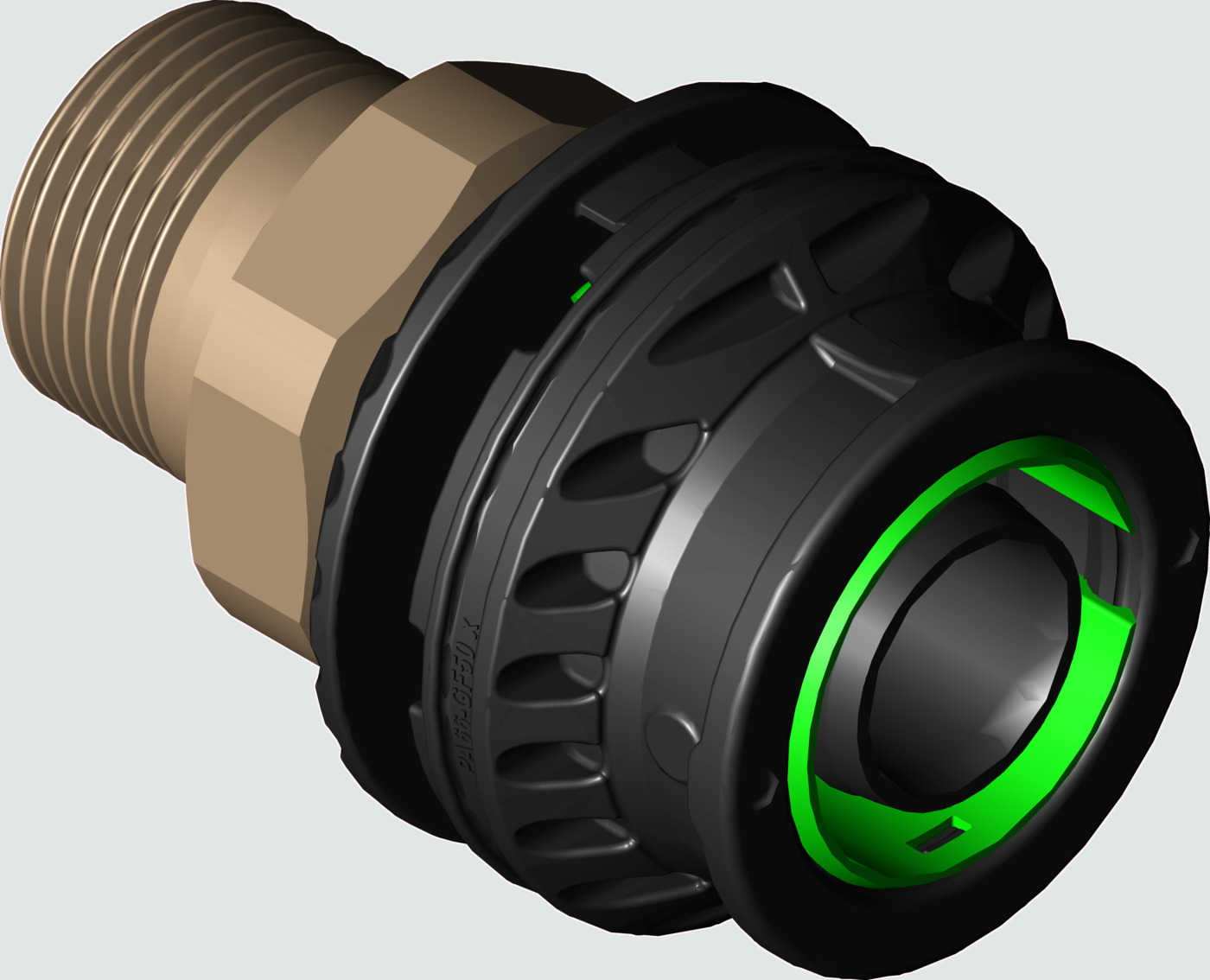

Geopress K adapter

Geopress K adapter

With Smart ConnectTM
  • Plastic
  • Silicon bronze threaded connection
  • Press connection, R-​thread

Model 9711

Instructions for use

Articles table

d R PU Article amount
25 ¾ 1 710 217
32 ¾ 1 710 224
32 1 1 710 231
32 1¼ 1 710 248
32 1½ 1 710 255
40 1 1 710 262
40 1¼ 1 710 279
40 1½ 1 710 286
50 1 1 710 293
50 1¼ 1 710 309
50 1½ 1 710 316
63 1½ 1 710 323
63 2 1 710 330

Warehouse labels - labels and cardboard

d R warehouse labels (box) warehouse labels (sticker) Article
25 ¾ 710 217
32 ¾ 710 224
32 1 710 231
32 1¼ 710 248
32 1½ 710 255
40 1 710 262
40 1¼ 710 279
40 1½ 710 286
50 1 710 293
50 1¼ 710 309
50 1½ 710 316
63 1½ 710 323
63 2 710 330

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please select)

d R file size Article
25 ¾ 69.6 kB 710 217
32 ¾ 238.9 kB 710 224
32 1 233.6 kB 710 231
32 1½ 239.9 kB 710 255
40 1 301.2 kB 710 262
40 1½ 295.5 kB 710 286
50 1 70.4 kB 710 293
50 1¼ 61.9 kB 710 309
50 1½ 59.7 kB 710 316
63 1½ 256.3 kB 710 323
63 2 253.2 kB 710 330

Z dimensions

d R Z [mm] L [mm] WS [mm] Ø [mm] Article
25 ¾ 50 81 36 52 710 217
32 ¾ 60 90 44 60 710 224
32 1 55 85 44 60 710 231
32 1¼ 57 88 44 60 710 248
32 1½ 60 90 44 60 710 255
40 1 59 95 50 70 710 262
40 1¼ 57 94 50 70 710 279
40 1½ 57 94 50 70 710 286
50 1 68 114 62 87 710 293
50 1¼ 70 116 62 87 710 309
50 1½ 61 107 62 87 710 316
63 1½ 77 123 70 97 710 323
63 2 72 118 70 97 710 330

WS [mm] = wrench size
Ø [mm] = diameter

Downloads

Instructions for use

Instructions for use

User manual Geopress K

Download

User manual Geopress K

Size: 2.1 MB Type: PDF
