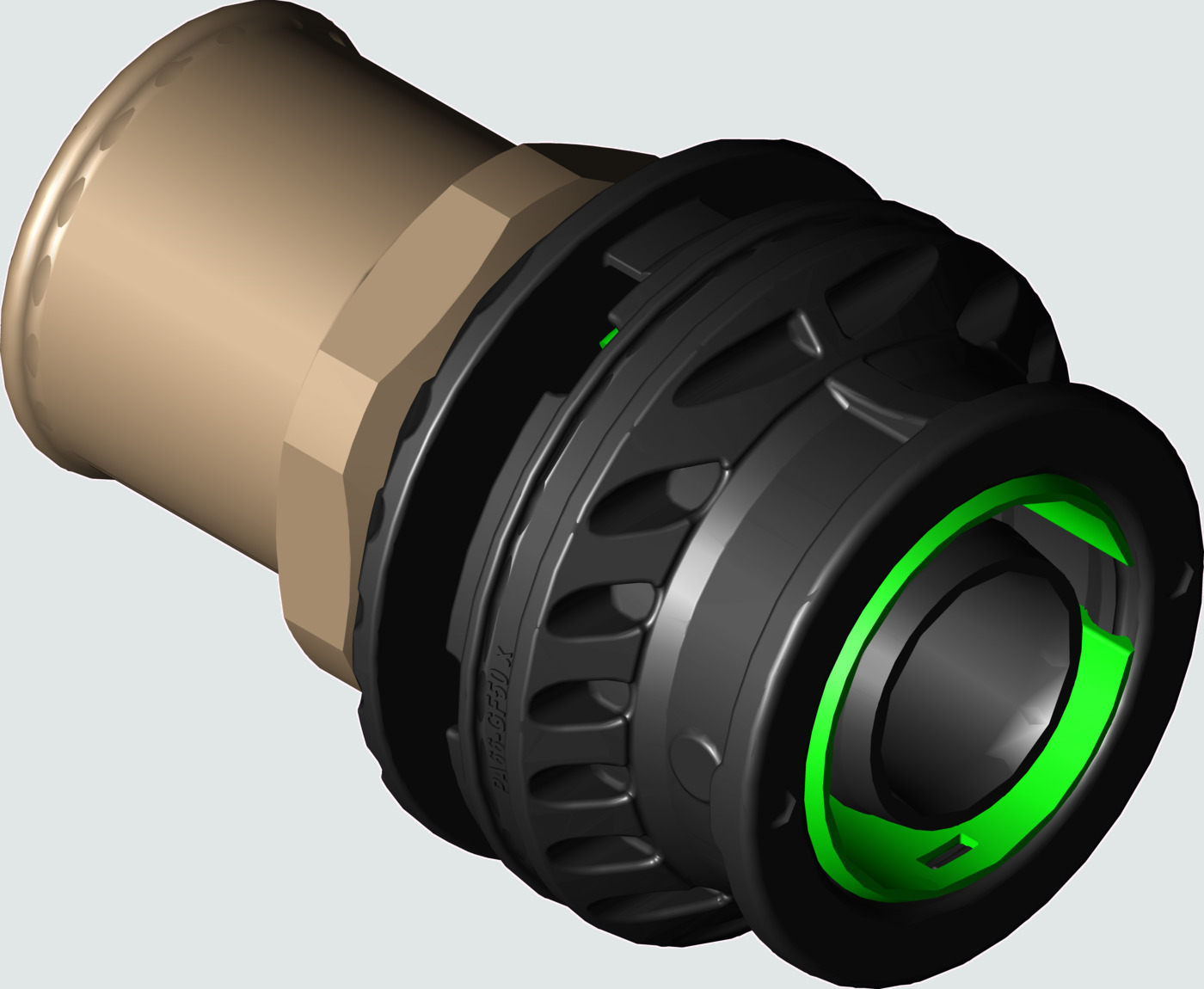

Geopress K adapter

Geopress K adapter

With Smart ConnectTM
  • Plastic
  • Silicon bronze threaded connection
  • Press connection, Rp-​thread

Model 9712

Instructions for use

Articles table

d Rp PU Article amount
25 ¾ 1 710 347
32 1 1 710 354
40 1¼ 1 710 361
50 1¼ 1 710 378
50 1½ 1 710 385
63 2 1 710 392

Warehouse labels - labels and cardboard

d Rp warehouse labels (box) warehouse labels (sticker) Article
25 ¾ 710 347
32 1 710 354
40 1¼ 710 361
50 1¼ 710 378
50 1½ 710 385
63 2 710 392

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please select)

d Rp file size Article
25 ¾ 129.8 kB 710 347
32 1 161.9 kB 710 354
40 1¼ 306.1 kB 710 361
50 1¼ 74.3 kB 710 378
50 1½ 93.9 kB 710 385
63 2 248.3 kB 710 392

Z dimensions

d Rp Z [mm] L [mm] WS [mm] Ø [mm] Article
25 ¾ 35 83 36 52 710 347
32 1 37 87 44 60 710 354
40 1¼ 39 97 50 70 710 361
50 1¼ 42 109 62 87 710 378
50 1½ 42 109 62 87 710 385
63 2 48 120 70 97 710 392

WS [mm] = wrench size
Ø [mm] = diameter

Downloads

Instructions for use

Instructions for use

User manual Geopress K

Download

User manual Geopress K

Size: 2.1 MB Type: PDF
