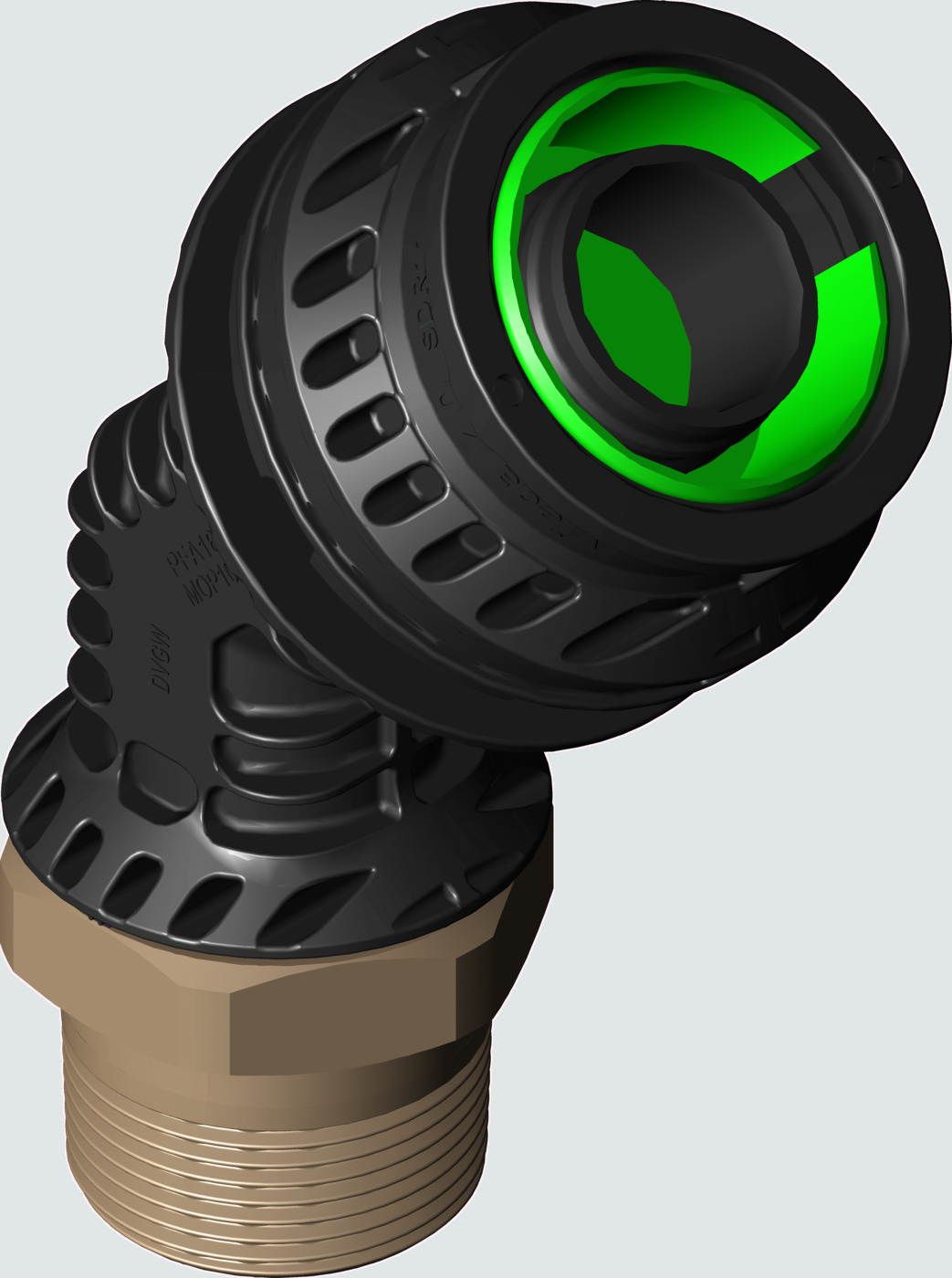

Geopress K adapter elbow 45°
Geopress K adapter elbow 45°
With Smart ConnectTM
Model 9726.2
- Plastic
- Silicon bronze threaded connection
- Press connection, R-thread
Model 9726.2
Articles table
| d | R | PU | Article | amount |
|---|---|---|---|---|
| 32 | 1 | 1 | 711 139 |
|
| 40 | 1¼ | 1 | 711 146 |
|
| 50 | 1½ | 1 | 711 153 |
|
| 63 | 2 | 1 | 711 160 |
|
CAD files
- Left mouse to rotate
- Right mouse to move
- Mouse wheel to zoom
- One finger touch to rotate
- Two finger touch to move
- Pinch to zoom
Z dimensions
| d | R | Z [mm] | L1 [mm] | L2 [mm] | WS [mm] | Article |
|---|---|---|---|---|---|---|
| 32 | 1 | 41 | 72 | 71 | 44 | 711 139 |
| 40 | 1¼ | 46 | 83 | 77 | 50 | 711 146 |
| 50 | 1½ | 56 | 102 | 86 | 62 | 711 153 |
| 63 | 2 | 57 | 103 | 99 | 70 | 711 160 |
