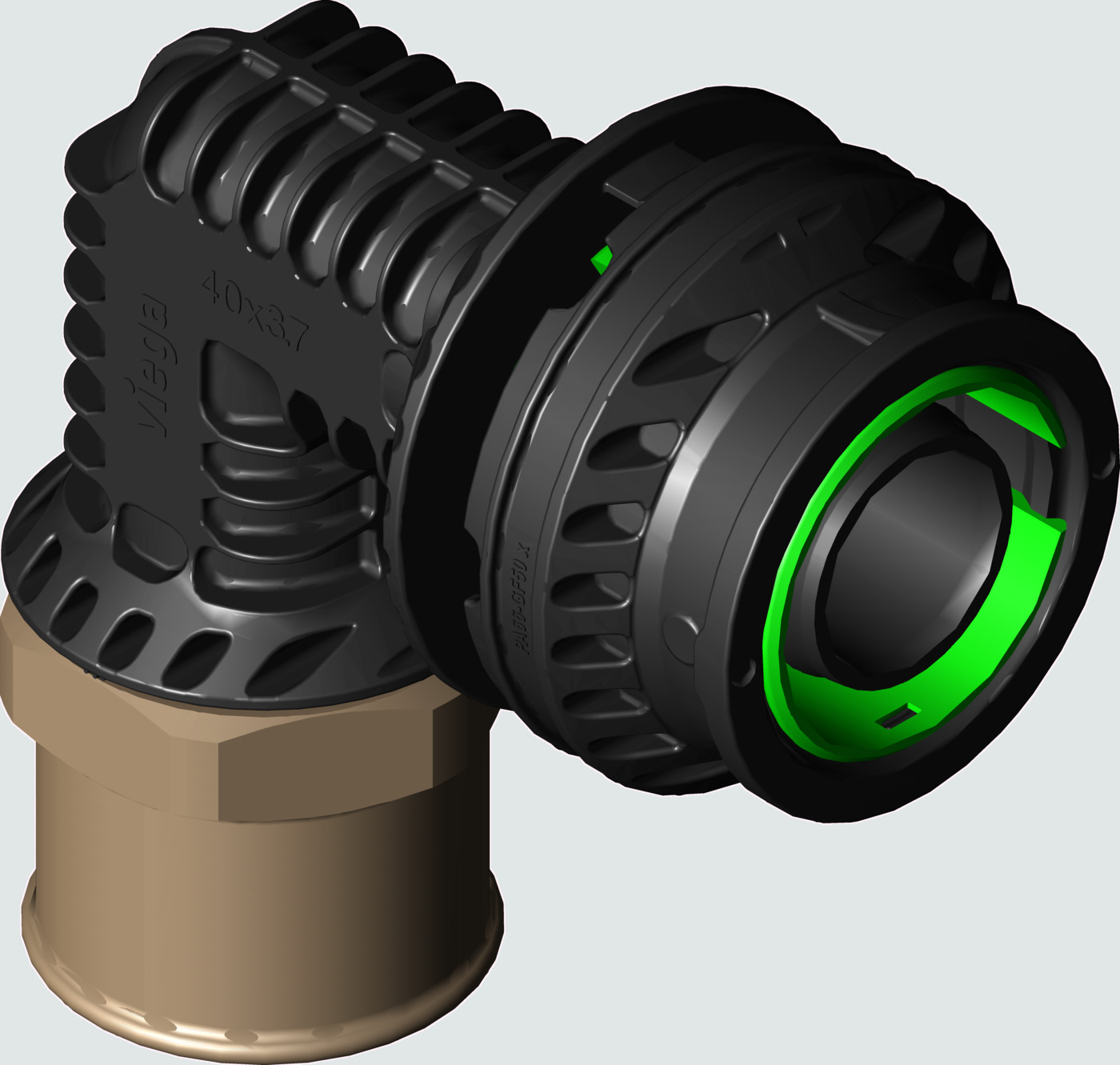

Geopress K adapter elbow 90°

With Smart ConnectTM
  • Plastic
  • Silicon bronze threaded connection
  • Press connection, Rp-​thread

Model 9714.2

Instructions for use

Articles table

d Rp PU Article amount
32 1 1 711 047
40 1 1 711 054
40 1¼ 1 711 061
50 1½ 1 711 078
63 2 1 711 085

Warehouse labels - labels and cardboard

d Rp warehouse labels (box) warehouse labels (sticker) Article
32 1 711 047
40 1 711 054
40 1¼ 711 061
50 1½ 711 078
63 2 711 085

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please select)

d Rp file size Article
32 1 3.5 MB 711 047
40 1 1.2 MB 711 054
40 1¼ 1.7 MB 711 061
50 1½ 2.0 MB 711 078
63 2 2.5 MB 711 085

Z dimensions

d Rp Z1 [mm] Z2 [mm] L1 [mm] L2 [mm] WS [mm] Article
32 1 53 65 83 84 44 711 047
40 1 60 72 97 92 50 711 054
40 1¼ 60 73 97 94 50 711 061
50 1½ 74 85 120 107 62 711 078
63 2 76 94 122 120 70 711 085
