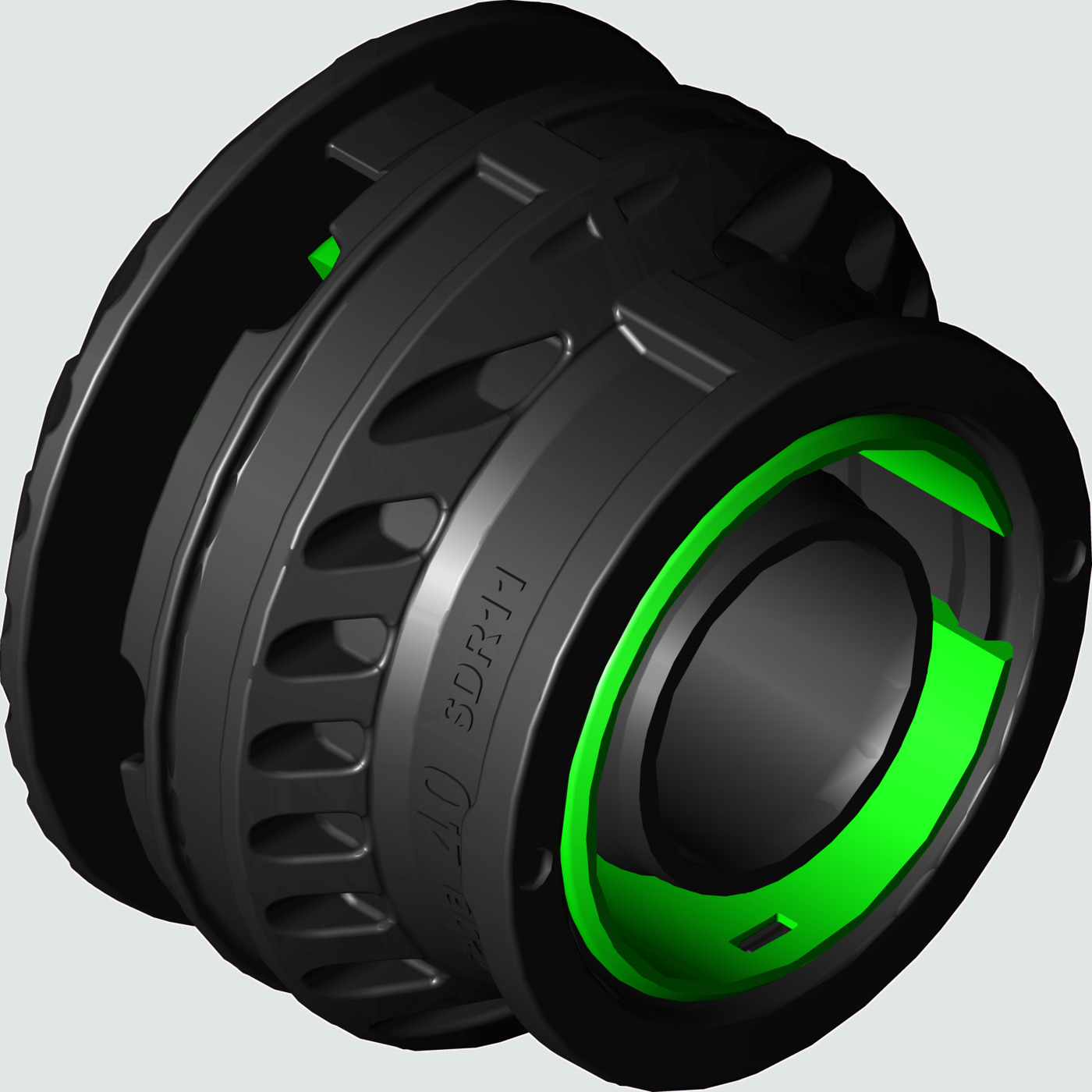

Geopress K cap
Articles table
| d | PU | Article | amount |
|---|---|---|---|
| 25 | 1 | 710 699 |
|
| 32 | 1 | 710 705 |
|
| 40 | 1 | 710 712 |
|
| 50 | 1 | 710 729 |
|
| 63 | 1 | 710 736 |
|
CAD files
- Left mouse to rotate
- Right mouse to move
- Mouse wheel to zoom
- One finger touch to rotate
- Two finger touch to move
- Pinch to zoom
Z dimensions
| d | Z [mm] | L [mm] | Ø [mm] | Article |
|---|---|---|---|---|
| 25 | 14 | 45 | 52 | 710 699 |
| 32 | 15 | 45 | 60 | 710 705 |
| 40 | 16 | 53 | 70 | 710 712 |
| 50 | 18 | 63 | 87 | 710 729 |
| 63 | 17 | 63 | 97 | 710 736 |
