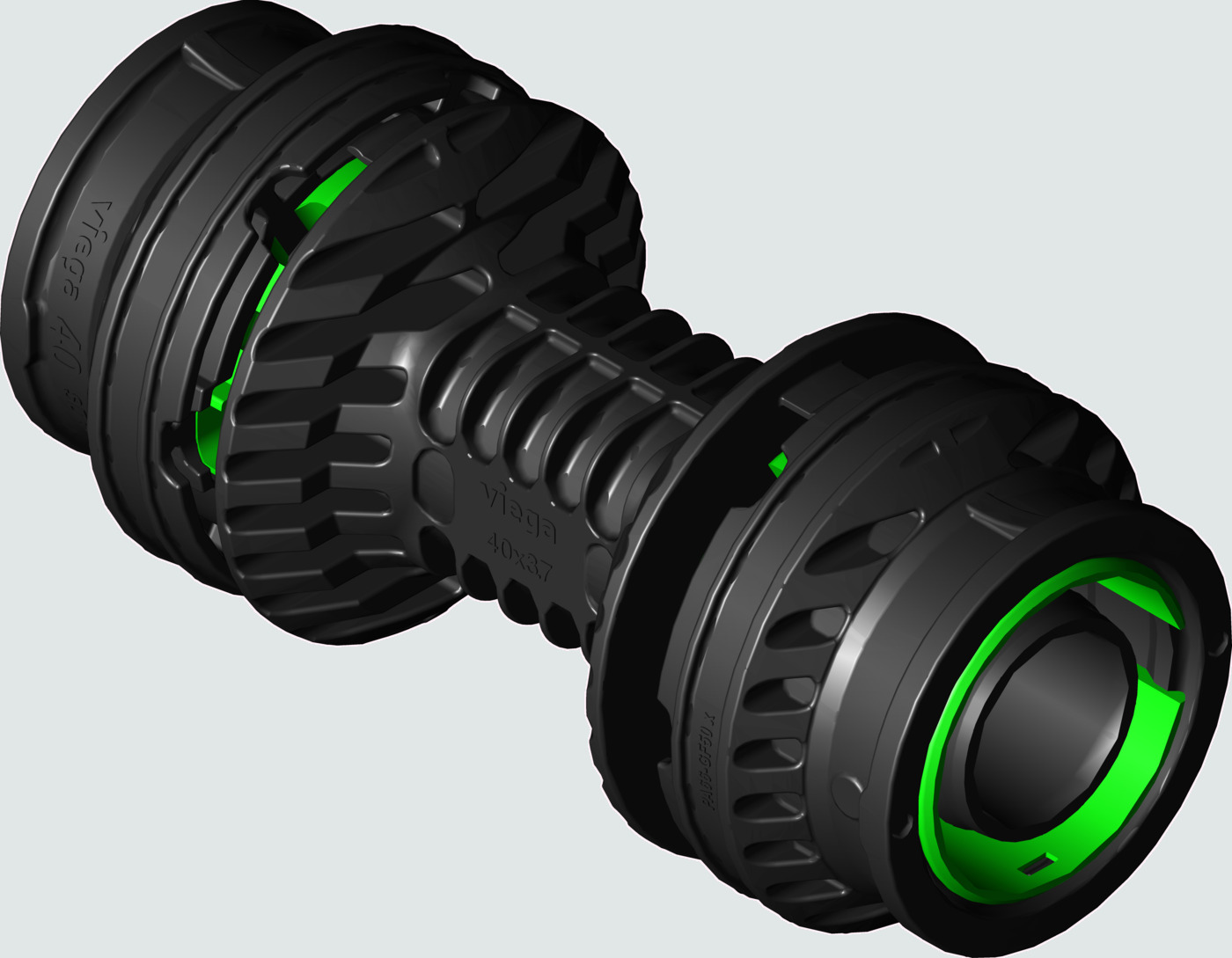

Geopress K coupling
Articles table
| d | PU | Article | amount |
|---|---|---|---|
| 25 | 1 | 710 057 |
|
| 32 | 1 | 710 064 |
|
| 40 | 1 | 710 071 |
|
| 50 | 1 | 710 088 |
|
| 63 | 1 | 710 101 |
|
CAD files
- Left mouse to rotate
- Right mouse to move
- Mouse wheel to zoom
- One finger touch to rotate
- Two finger touch to move
- Pinch to zoom
Z dimensions
| d | Z [mm] | L [mm] | Ø [mm] | Article |
|---|---|---|---|---|
| 25 | 51 | 113 | 52 | 710 057 |
| 32 | 62 | 123 | 60 | 710 064 |
| 40 | 75 | 148 | 70 | 710 071 |
| 50 | 82 | 174 | 87 | 710 088 |
| 63 | 81 | 173 | 97 | 710 101 |
