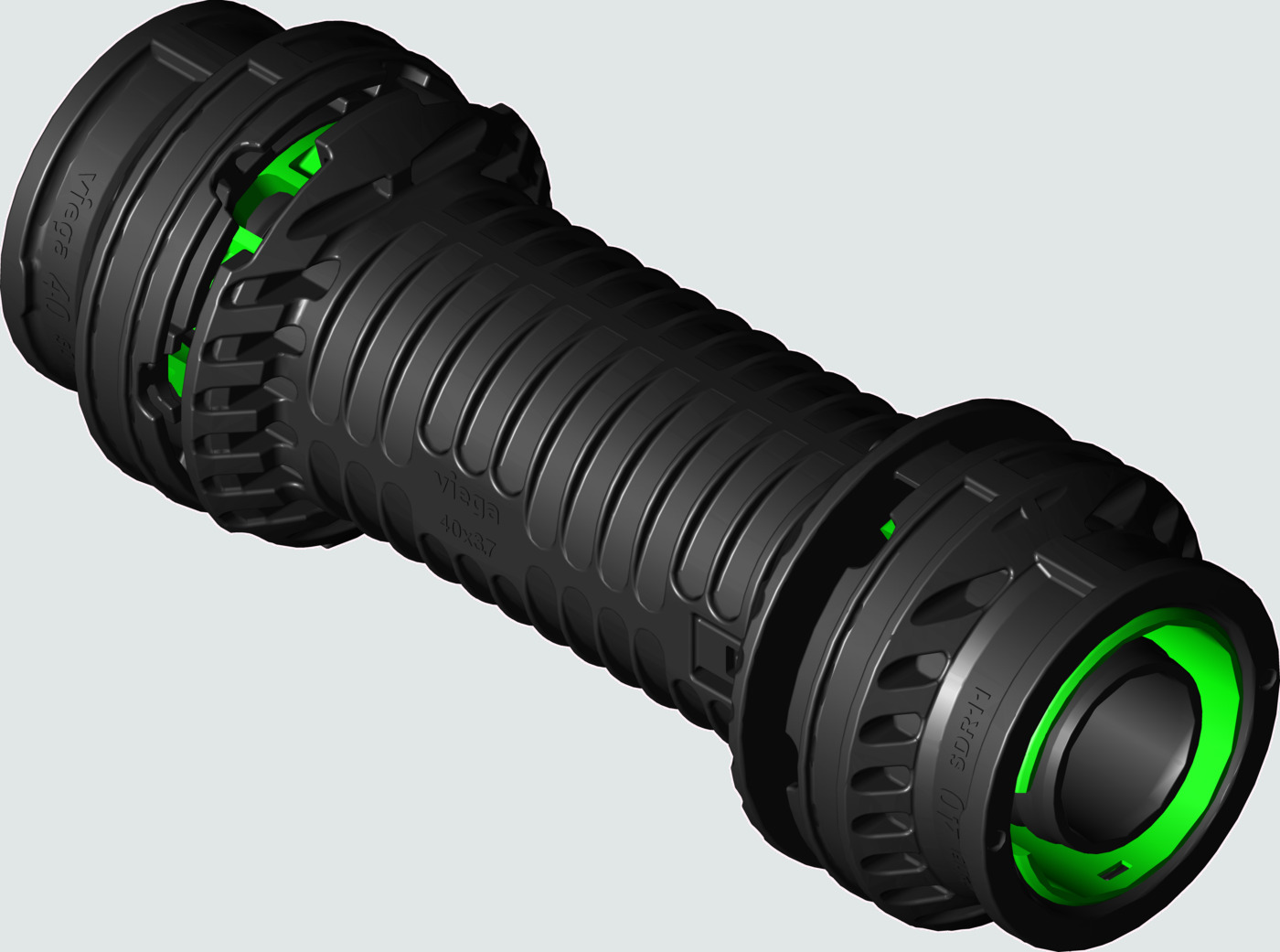

Geopress K repair coupling
Geopress K repair coupling
With Smart ConnectTM
Model 9715.5
- Plastic
- Press connectors
- Long insertion depth for PE pipe
Model 9715.5
Articles table
| d | PU | Article | amount |
|---|---|---|---|
| 32 | 1 | 710 118 |
|
| 40 | 1 | 710 125 |
|
| 50 | 1 | 710 132 |
|
| 63 | 1 | 710 149 |
|
CAD files
- Left mouse to rotate
- Right mouse to move
- Mouse wheel to zoom
- One finger touch to rotate
- Two finger touch to move
- Pinch to zoom
Z dimensions
| d | INDmin [mm] | IND [mm] | L [mm] | Ø [mm] | Article |
|---|---|---|---|---|---|
| 32 | 30 | 119 | 171 | 60 | 710 118 |
| 40 | 36 | 119 | 191 | 70 | 710 125 |
| 50 | 45 | 140 | 212 | 87 | 710 132 |
| 63 | 45 | 139 | 219 | 97 | 710 149 |
