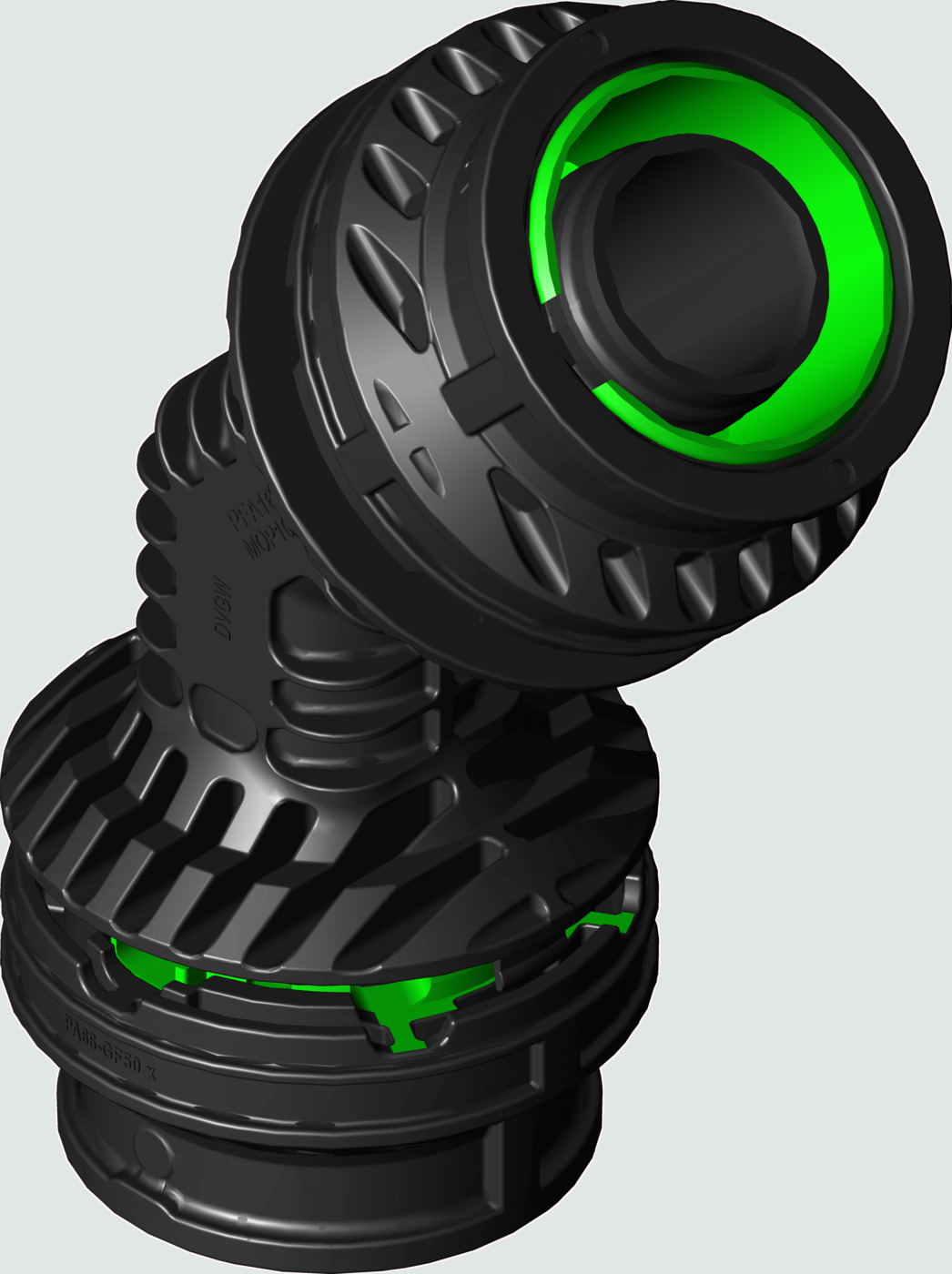

Geopress K
Articles table
| d | PU | Article | amount |
|---|---|---|---|
| 32 | 1 | 711 092 |
|
| 40 | 1 | 711 108 |
|
| 50 | 1 | 711 115 |
|
| 63 | 1 | 711 122 |
|
CAD files
- Left mouse to rotate
- Right mouse to move
- Mouse wheel to zoom
- One finger touch to rotate
- Two finger touch to move
- Pinch to zoom
Z dimensions
| d | Z [mm] | L [mm] | Article |
|---|---|---|---|
| 32 | 41 | 72 | 711 092 |
| 40 | 46 | 83 | 711 108 |
| 50 | 56 | 102 | 711 115 |
| 63 | 57 | 103 | 711 122 |
