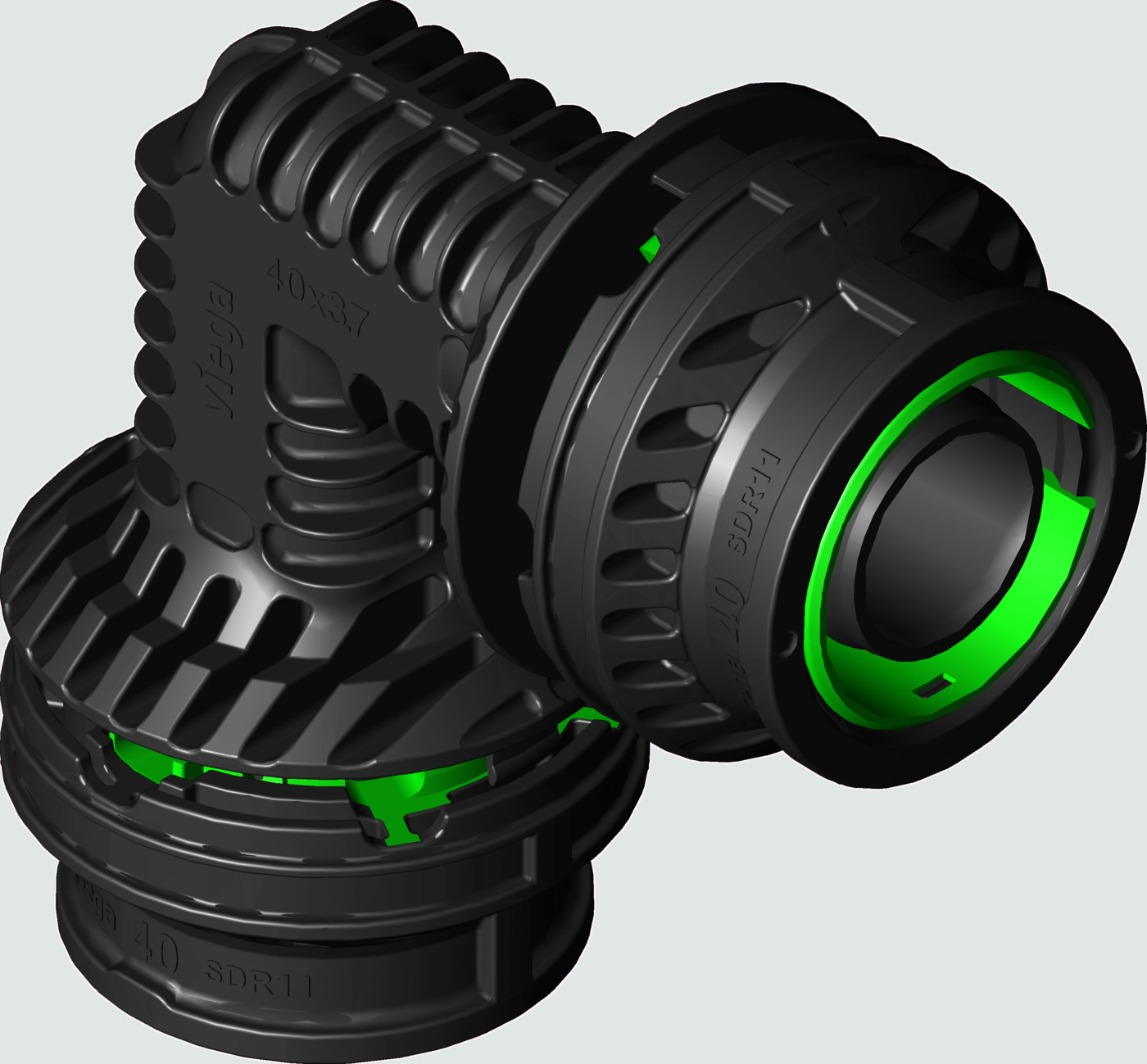

Geopress K elbow 90°

Geopress K elbow 90°

With Smart ConnectTM
  • Plastic
  • Press connectors

Model 9716

Instructions for use

Articles table

d PU Article amount
25 1 710 873
32 1 710 880
40 1 710 897
50 1 710 903
63 1 710 910

Warehouse labels - labels and cardboard

d warehouse labels (box) warehouse labels (sticker) Article
25 710 873
32 710 880
40 710 897
50 710 903
63 710 910

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please select)

d file size Article
25 558.9 kB 710 873
32 2.8 MB 710 880
40 2.6 MB 710 897
50 3.2 MB 710 903
63 4.2 MB 710 910

Z dimensions

d Z [mm] L [mm] Article
25 46 78 710 873
32 53 83 710 880
40 60 97 710 897
50 74 120 710 903
63 76 122 710 910

Downloads

Instructions for use

Instructions for use

User manual Geopress K

Download

User manual Geopress K

Size: 2.1 MB Type: PDF
