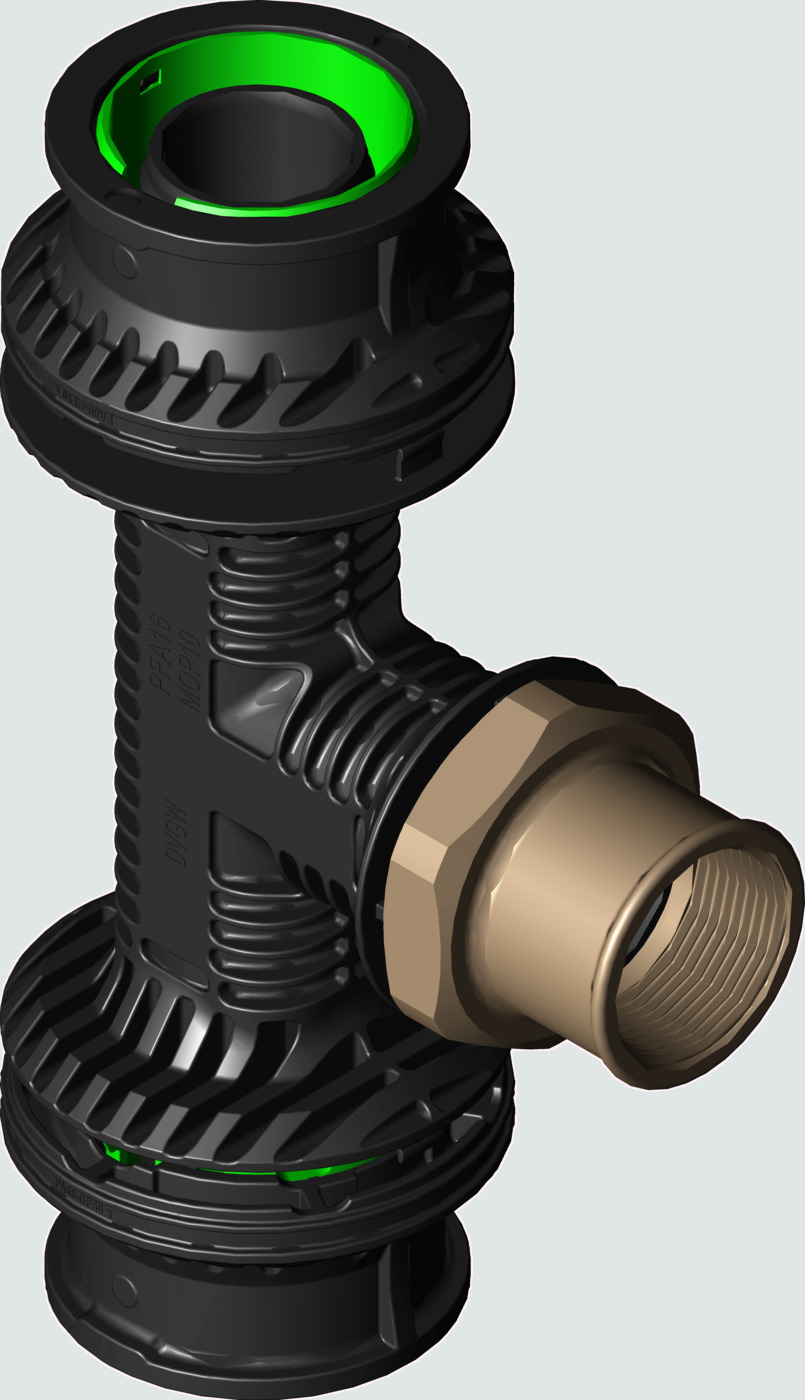

Geopress K T-piece

Geopress K T-piece

With Smart ConnectTM
  • Plastic
  • Silicon bronze threaded connection
  • Press connectors, threaded connection

Model 9717.1

Instructions for use

Articles table

d1 R Rp d2 PU Article amount
32 1 ¾ 32 1 711 313
40 1¼ 1 40 1 711 320
50 1¼ 50 1 711 337
50 1½ 50 1 711 344
63 2 1½ 63 1 711 351

Warehouse labels - labels and cardboard

d1 R Rp d2 warehouse labels (box) warehouse labels (sticker) Article
32 1 ¾ 32 711 313
40 1¼ 1 40 711 320
50 1¼ 50 711 337
50 1½ 50 711 344
63 2 1½ 63 711 351

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please select)

d1 R Rp d2 file size Article
32 1 ¾ 32 4.5 MB 711 313
40 1¼ 1 40 4.3 MB 711 320
50 1¼ 50 5.1 MB 711 337
50 1½ 50 2.8 MB 711 344
63 2 1½ 63 3.7 MB 711 351

Z dimensions

d1 R Rp d2 Z1 [mm] Z2 [mm] Z3 [mm] L1 [mm] L2 [mm] L3 [mm] WS [mm] Article
32 1 ¾ 32 53 73 53 83 90 83 44 711 313
40 1¼ 1 40 60 80 60 97 99 97 50 711 320
50 1¼ 50 74 85 74 120 107 120 62 711 337
50 1½ 50 74 74 120 104 120 62 711 344
63 2 1½ 63 76 103 76 122 124 122 70 711 351

WS [mm] = wrench size

Downloads

Instructions for use

Instructions for use

User manual Geopress K

Download

User manual Geopress K

Size: 2.1 MB Type: PDF
