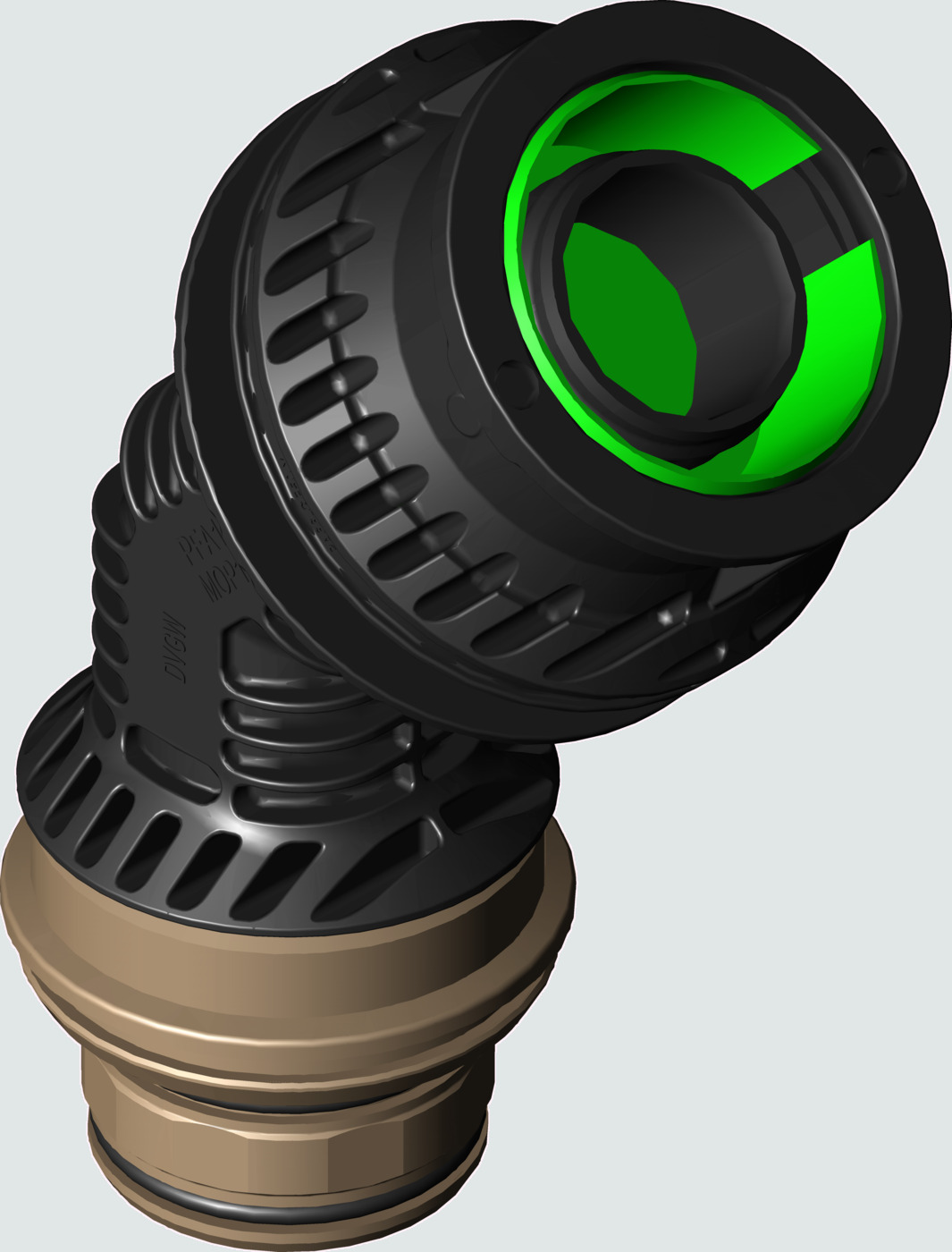

Geopress K connection elbow 45°
Geopress K connection elbow 45°
With Smart ConnectTM
Model 9794.1TW
- suitable for Geopress tapping valve Model 9690TW
- Plastic
- metal adapter
- Press connection, Viega tapping valve connection
Components
Double O-ring seal EPDMNote
Only water use!Model 9794.1TW
Articles table
| d | PU | Article | amount |
|---|---|---|---|
| 32 | 1 | 767 525 |
|
| 40 | 1 | 767 532 |
|
| 50 | 1 | 767 549 |
|
| 63 | 1 | 768 256 |
|
CAD files
- Left mouse to rotate
- Right mouse to move
- Mouse wheel to zoom
- One finger touch to rotate
- Two finger touch to move
- Pinch to zoom
Z dimensions
| d | Article |
|---|---|
| 32 | 767 525 |
| 40 | 767 532 |
| 50 | 767 549 |
| 63 | 768 256 |
