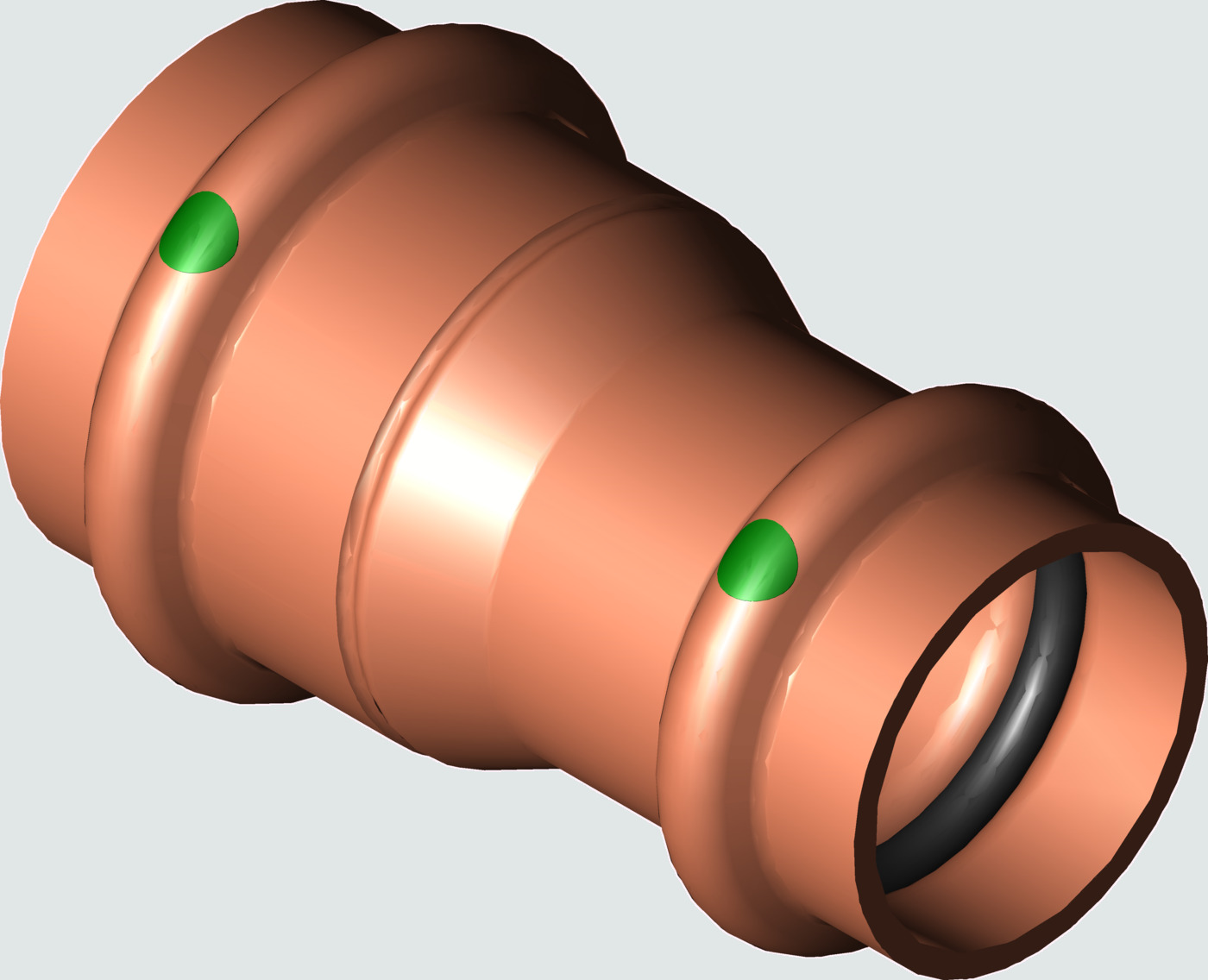

Propress reducing coupling
Propress reducing coupling
With Smart ConnectTM
Model 0715.2
- Copper
- Press connection
Components
EPDM sealing elementsModel 0715.2
Articles table
| DN1 | DN2 | PU | Article | amount |
|---|---|---|---|---|
| 18 | 15 | 10 | 673 628 |
|
| 20 | 15 | 10 | 579 210 |
|
| 20 | 18 | 10 | 673 611 |
|
| 25 | 15 | 10 | 579 227 |
|
| 25 | 20 | 10 | 579 234 |
|
| 32 | 15 | 1 | 579 241 |
|
| 32 | 20 | 1 | 579 258 |
|
| 32 | 25 | 1 | 579 265 |
|
| 40 | 20 | 1 | 579 272 |
|
| 40 | 25 | 1 | 579 289 |
|
| 40 | 32 | 1 | 579 296 |
|
| 50 | 20 | 1 | 579 302 |
|
| 50 | 25 | 1 | 579 319 |
|
| 50 | 32 | 1 | 579 326 |
|
| 50 | 40 | 1 | 579 333 |
|
Warehouse labels - labels and cardboard
CAD files
- Left mouse to rotate
- Right mouse to move
- Mouse wheel to zoom
- One finger touch to rotate
- Two finger touch to move
- Pinch to zoom
(Please select)
Z dimensions
| DN1 | DN2 | Z [mm] | L [mm] | Article |
|---|---|---|---|---|
| 18 | 15 | 9 | 46 | 673 628 |
| 20 | 15 | 10 | 50 | 579 210 |
| 20 | 18 | 8 | 49 | 673 611 |
| 25 | 15 | 17 | 58 | 579 227 |
| 25 | 20 | 11 | 56 | 579 234 |
| 32 | 15 | 24 | 67 | 579 241 |
| 32 | 20 | 18 | 65 | 579 258 |
| 32 | 25 | 14 | 62 | 579 265 |
| 40 | 20 | 25 | 78 | 579 272 |
| 40 | 25 | 18 | 72 | 579 289 |
| 40 | 32 | 11 | 67 | 579 296 |
| 50 | 20 | 39 | 100 | 579 302 |
| 50 | 25 | 32 | 94 | 579 319 |
| 50 | 32 | 25 | 89 | 579 326 |
| 50 | 40 | 19 | 89 | 579 333 |
